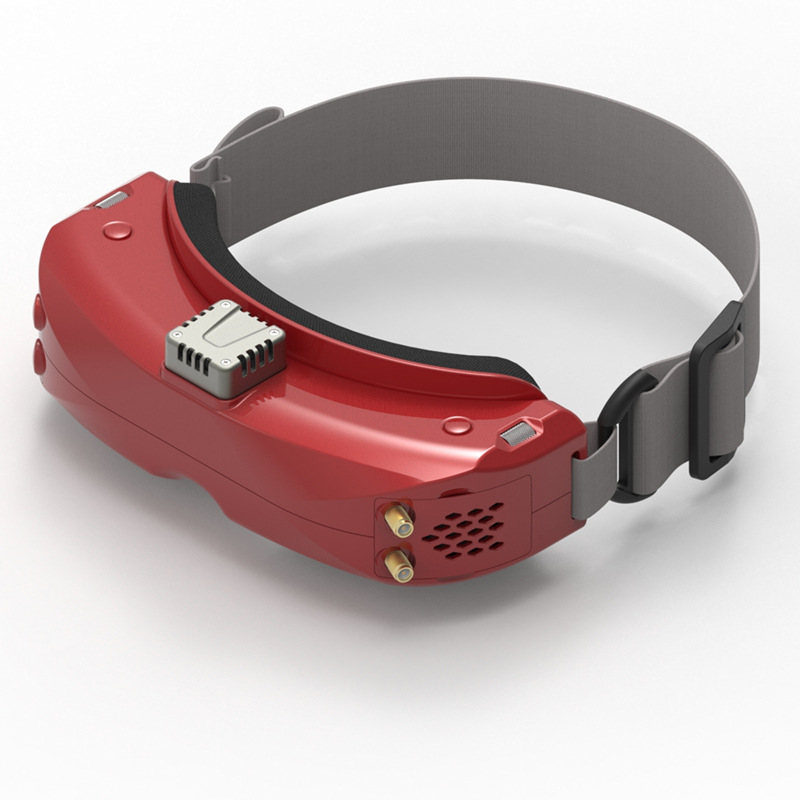

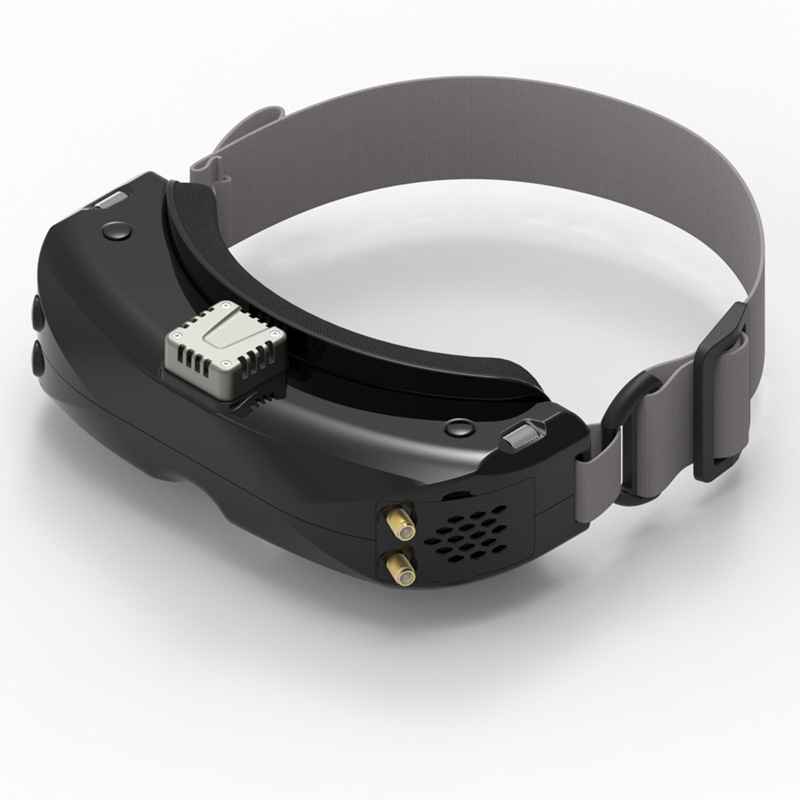

SKYZONE SKY04X Tracker OLED 5.8ghz 48CH Steadyview Receiver 1280X960 FPV Goggles Support DVR Video Glasses Tracking For RC Drone

Description:

Brand: SKYZONE

Model: SKY04X

Item: 5.8GHz 48CH Steadyview Receiver 1280X960 FPV Goggles

Screen: OLED

Resolution: 1280X960

FOV (Diagonal): 46°

AspectRatio: 4:3/16:9

Focus: -6~+6 adjustable

Interpupillary distance(IPD): 58-71mm

Receiver: 5.8Ghz 48CH Steadyview Receiver

Language: 10 Language

Power Supply: DC6.5-25.2V/USB5V

PowerConsumption: 720mAat12V

DVR: H264,30fps,MOV6Mbps,SD Card support up to128Gb

Head Tracker: 3-axis Accelerometer, 3-axisgyroscope

Dimentions: 185*75*67mm

Weight: 267g

* SteadyView Receiver

SteadyView receiver merge two signal to one, make image more stable and clear in challenging condition.

With module bay, goggles have more capability to upgrade.

* Focus Adjustment.

The new Optics have large Field of View (46 degree). and the Optics have Focus adjustment feature (-6~+6), no need diopter any more.

* OELD Screen

The 1280*960 screen have high resolution and vivid color, high contrast ration, pilots can see more details.

* Advanced Screen Settings.

The aspect ration can is switchable, and 4 Preset screen setting and 3 customized setting for indoor, outdoor flight or different weather.

* Shuttle Wheel Control

No more confusing multi function button or 5 way Joy stick, with smooth and nature shuttle control, easy to navigate.

* New User Interface with 10 languages.

New UI with shuttle wheel, easy to navigate, 10 languages to choose for local user.

BAND/CHANNEL table:

Package Included:

1x Goggles

1x Receiver Module

2x Faceplate (wide and narrow)

1x Sponge with velcr0

1x Zipper case

1x Power cable

1x Headtracker cable

2x 5.8GHz 2dD antennas

1x Video/Audio Cable

1x USB-C Cable

1x Uer Manual
