- Model Number: FOXTECH SEEKER-30 TIR
- Brand Name: rovmaker
- Origin: Mainland China
- Certification: CE,RoHS
- Drones Accessories Type: Data Transmission System
SEEKER-30 TIR is a 3-axis high precision gimbal with 30X starlight zoom camera and thermal camera supporting both HDMI and Ethernet output. The 30X zoom camera provides 1080P 60FPS full HD video streaming and the 30X zoom capability enable you to see objects in detail over distance. The thermal camera with a 25mm IR sensor, pixels is 640×480. The thermal camera allows you to detect targets in the night or low visibile conditions. SEEKER-30 TIR uses Sony sensor,and the minimum illumination is 0.01lux@F1.6 (color).
Specifications:
Weight:1400g
Working Voltage: 4S-6S

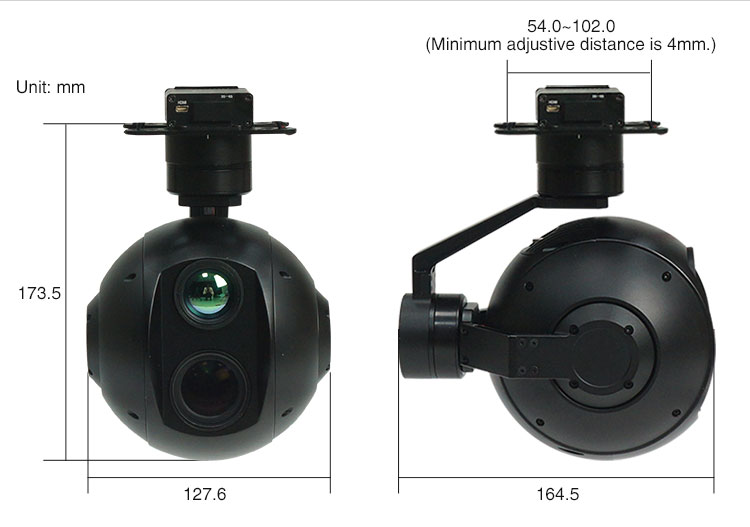

Size:164.5×127.6×173.5mm
Working Temperature: -20℃ ~ +80 ℃
Static Current: 400mA@16V
Dynamic Current: 500mA@16V
Range of control angle: Pitch:±90° Roll:±85° Yaw:±170°
Control Precision:
Pitch & Roll: ±0.01°Yaw: ±0.01° White Light Camera:
Sensor: 1/2.8" 2.13 Megapixels Exmor R CMOS sensor
Lens: 30X optical zoom, f=4.3~129mm, F1.6-F4.7
Video Output Resolution: 1920*1080P@60fps
Minimum illumination:
Colour: 0.01 lx(F1.6,AGC on,1/30s)
S/N ratio: More than 50dB
Aperture: Φ16.0 Thermal Camera:
Pixels: 640×480
Pixel Size: 17μm
Emissivity Correction: Emissivity 0.01~1 adjustable
Image Enhancement: Automatically adjusts image brightness and contrast
Color Palette: Black hot, white hot, pseudo color
Tracking:
Warning Temperature -20℃～120℃
Data Refresh Rate: 25Hz
Output lag: ＜3ms
Tracking Velocity: ±32 pix/frame
Target Size: 16×16 pixels – 128×128 pixels
Weight:1400g
Working Voltage: 4S-6S
Size:164.5×127.6×173.5mm
Working Temperature: -20℃ ~ +80 ℃
Static Current: 400mA@16V
Dynamic Current: 500mA@16V
Range of control angle: Pitch:±90° Roll:±85° Yaw:±170°
Control Precision:
Pitch & Roll: ±0.01°Yaw: ±0.01° White Light Camera:
Sensor: 1/2.8" 2.13 Megapixels Exmor R CMOS sensor
Lens: 30X optical zoom, f=4.3~129mm, F1.6-F4.7
Video Output Resolution: 1920*1080P@60fps
Minimum illumination:
Colour: 0.01 lx(F1.6,AGC on,1/30s)
S/N ratio: More than 50dB
Aperture: Φ16.0 Thermal Camera:
Pixels: 640×480
Pixel Size: 17μm
Emissivity Correction: Emissivity 0.01~1 adjustable
Image Enhancement: Automatically adjusts image brightness and contrast
Color Palette: Black hot, white hot, pseudo color
Tracking:
Warning Temperature -20℃～120℃
Data Refresh Rate: 25Hz
Output lag: ＜3ms
Tracking Velocity: ±32 pix/frame
Target Size: 16×16 pixels – 128×128 pixels
